2.1h.3ii Inverting Amplifier

Inverting Amplifier

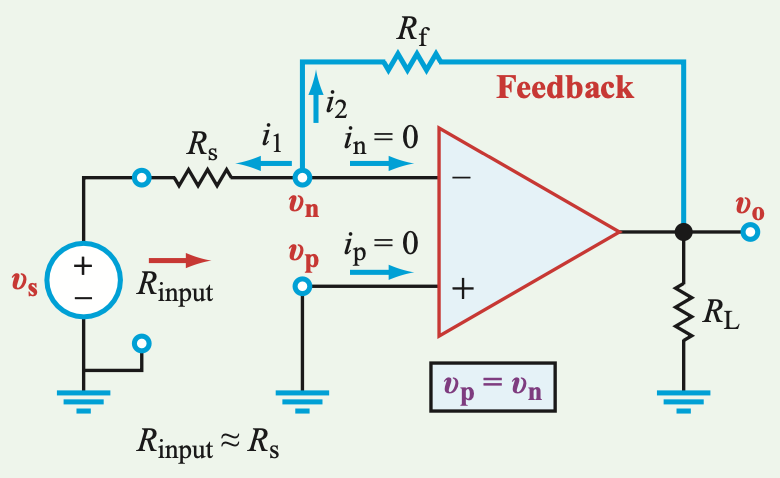

An inverting amplifier is an op-amp configuration that utilizes negative feedback to invert the source voltage and adds a gain to the output voltage, such that $V_o=G{V}_s$, where $G=-\frac{R_f}{R_i}$. The figure below visually describes the configuration.
